CNC Milling Machine MECOF CS 500 Agile - HEIDENHAIN TNC 426

Sold

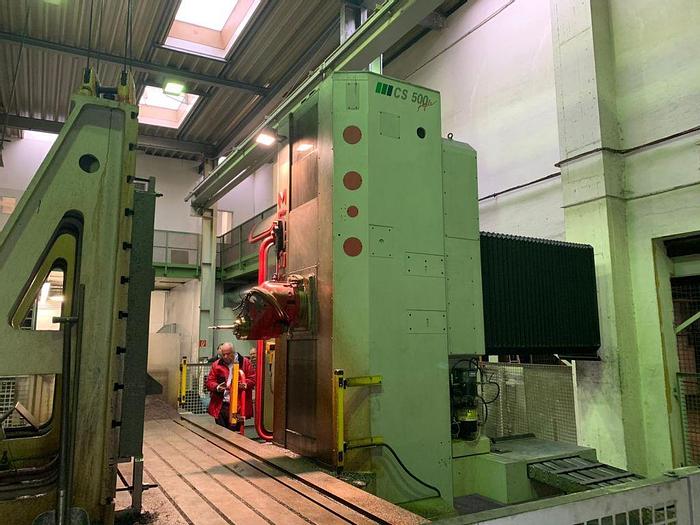

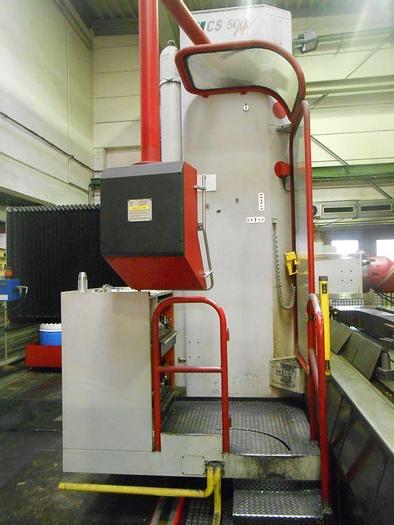

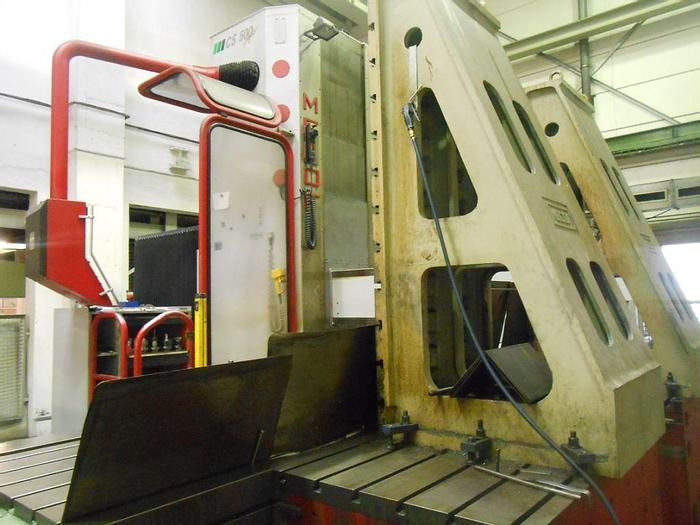

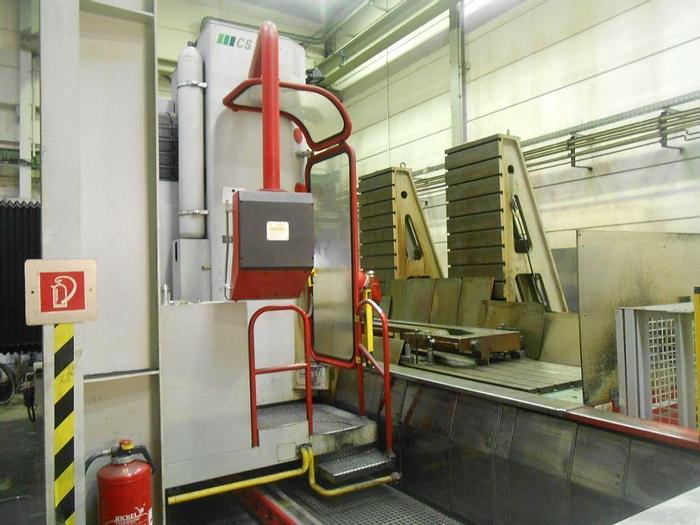

CNC Milling Machine MECOF CS 500 Agile - HEIDENHAIN TNC 426

Location:Lonate Pozzolo, Italy

Description

CNC Travel Column Milling Machine MECOF CS 500 Agile - 4.000 rpm, Index Head TBA4, capacity 4000x1700x 1250 mm, CNC HEIDENHAIN TNC 426

Specifications

ManufacturerMECOF
ModelCS 500 Agile
Year2002
ConditionUsed
Stock NumberFR313
Working table size5000x1100 mm
Longitudinal travel x axis4000 mm
Cross travel y axis1250 mm
Vertical travel z axis1700 mm
Working feed x-y-z axes0 - 20.000 mm/1'
Rapid feed x-y-z axes20.000 mm/1'
Spindle taper50 DIN69871
Spindle speed0 - 4000 rpm
Electrospindle speed21.000 rpm
Spindle motor power s625 Kw

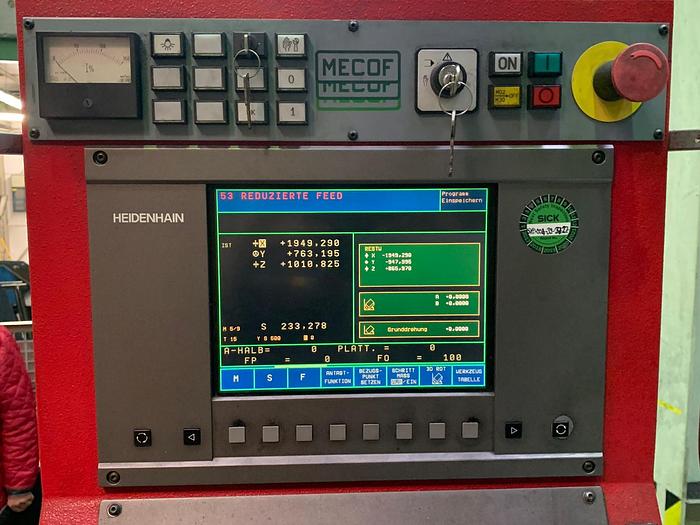

CncHEIDENHAIN TNC 426

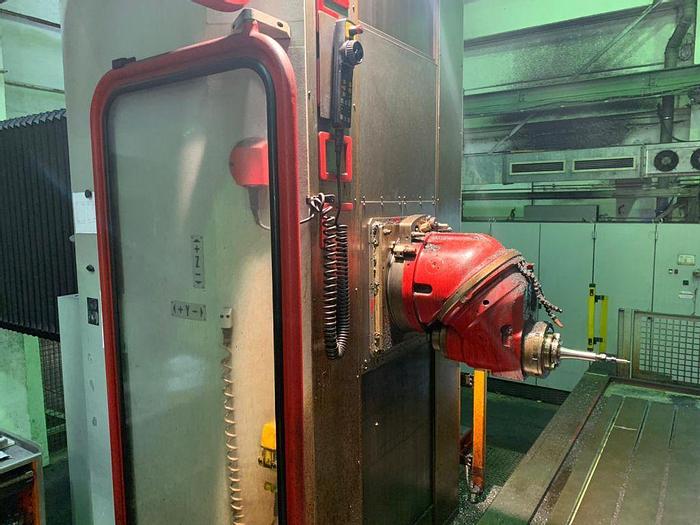

AccessoriesAutomatic Index Head TBA4, 2 box table, 2 squares, electrospindle

Additional Features

Information about technical data are not binding.
Machine available subject to prior sale.
