Grinding machine FAVRETTO MC 130 Digit plus
New in Stock
Grinding machine FAVRETTO MC 130 Digit plus
Contact us for price
Location:Lonate Pozzolo, Italy
Description
Surface Grinding Machine FAVRETTO MC130, 1300x700 mm, magnetic plate, sistem Digit Plus FAVRETTO
Specifications
| Manufacturer | FAVRETTO |
| Model | MC 130 Digit plus |
| Year | 2005 |
| Condition | Used |
| Stock Number | R333 |
| Max working dimensions | 1500x750 mm |
| Working table size | 1300x500 mm |
| Longitudinal travel x axis | 1640mm |
| Cross travel y axis | 650 mm |
| Clearance between worktable and spindle axis | 850 mm |
| Feed rate x axis | 1 - 40 m/1' |
| Feed rate y axes | 0 - 2000 m m/1' |
| Wheel speed | Stepless by Variable speed drive AC |
| Wheel dimension | 400x152,4x100 mm |
| Spindle motor power | 15Kw |

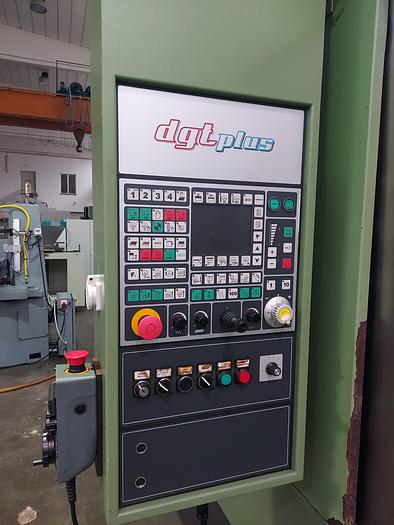

| Nc | Digit FAVRETTO |
| Weight | 8.000 Kg |

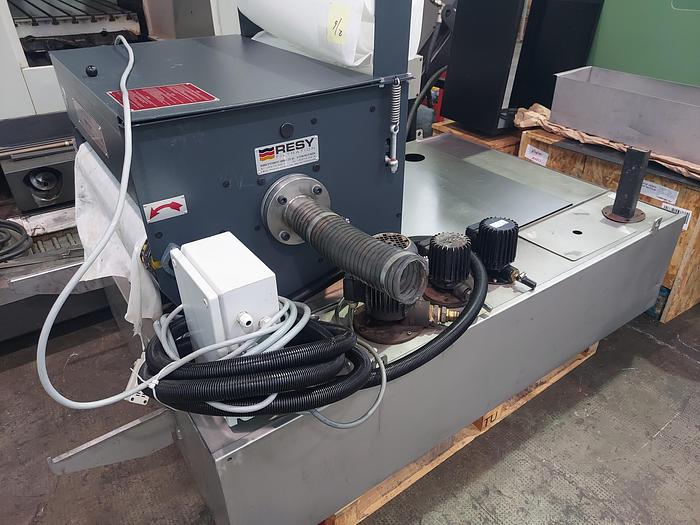

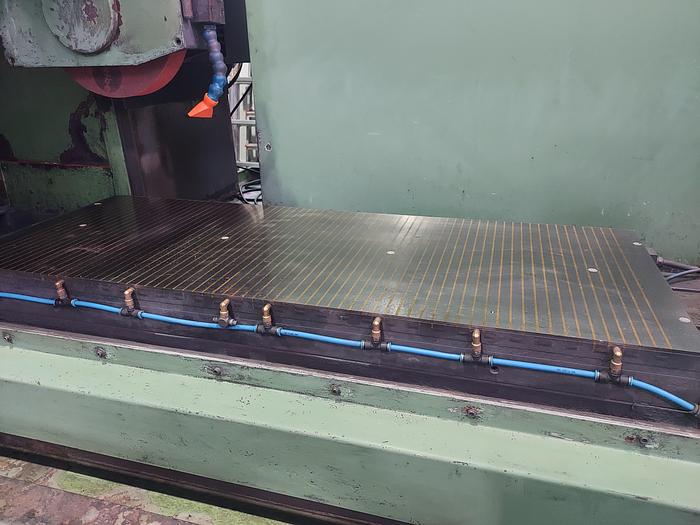

| Accessories | Electro permanent magnetic plate 1300x500 mm, coolant tank with paper filter |
Additional Features
Information about technical data are not binding.
Machine available subject to prior sale.
