Machining Centre SERRMAC - SERRTECH M1 - CNC HEIDENHAIN 530
Machining Centre SERRMAC - SERRTECH M1 - CNC HEIDENHAIN 530
Contact us for price
Lonate Pozzolo, Italy
Description

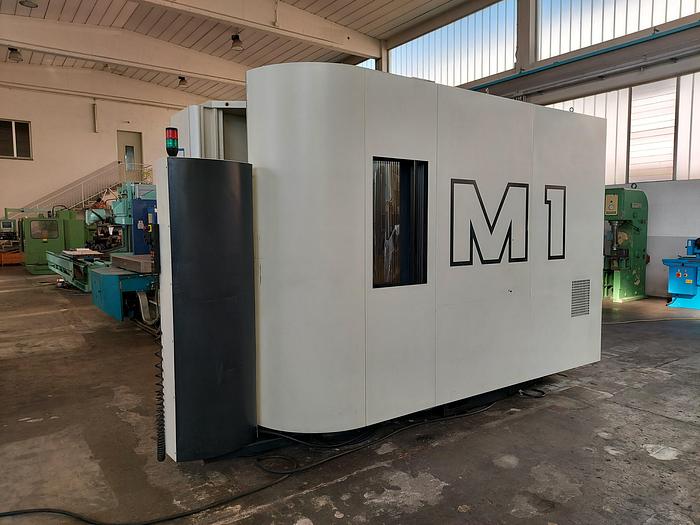

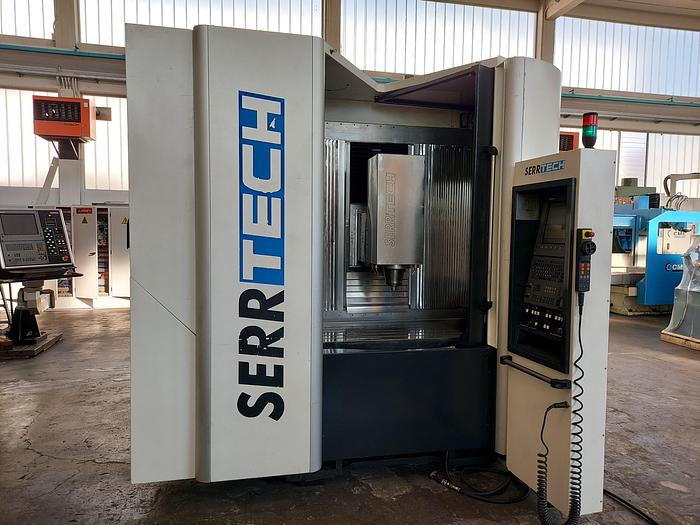

Vertical Machining Centre SERRMAC - SERRTECH M1 - 12.000 rpm, capacity 1000x600x640 mm, CNC HEIDENHAIN iTNC 530.
Specifications
| Manufacturer | SERRMAC |
| Model | SERRTECH - M1 |
| Year | 2006 |
| Condition | Used |
| Stock Number | CL068 |
| Working table size | 1200x600 mm |
| Longitudinal travel x axis | 1000 mm |
| Cross travel y axis | 600 mm |
| Vertical travel z axis | 640 mm |
| Spindle taper type | 40 |
| Automatic tools change nr. | 30 |
| Spindle speed | 0- 12.0000 giri/1' |
| Spindle motor power | 22,5 Kw |
| Working feed x-y-z axes | 0 - 60.000 mm/1' |
| Rapid feed x-y-z axes | 60.000 mm/1' |

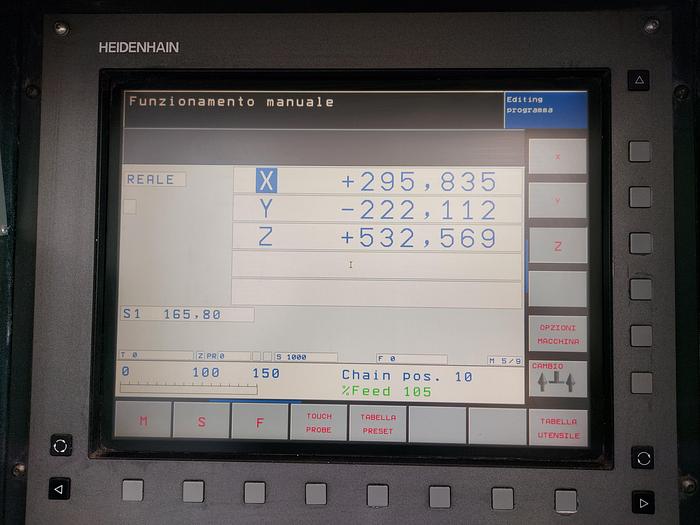

| Cnc | HEIDENHAIN 530 |
| Approx net weight | 9.000 Kg |
| Accessories | Coolant trught spindle, chip conveyor |
Additional Features
Information about technical data are not binding.
Machine available subject to prior sale.
