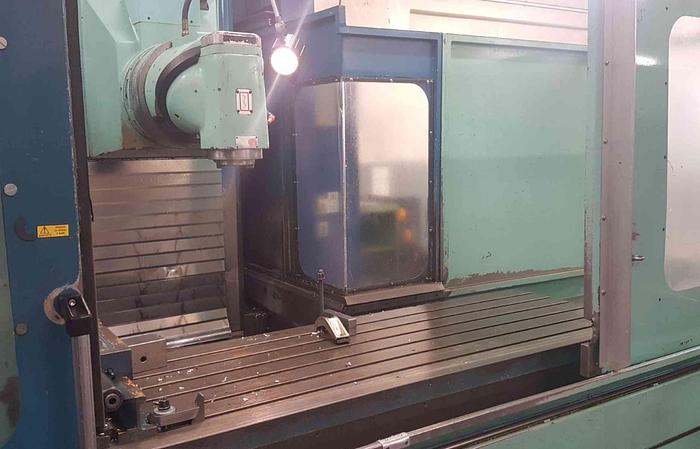

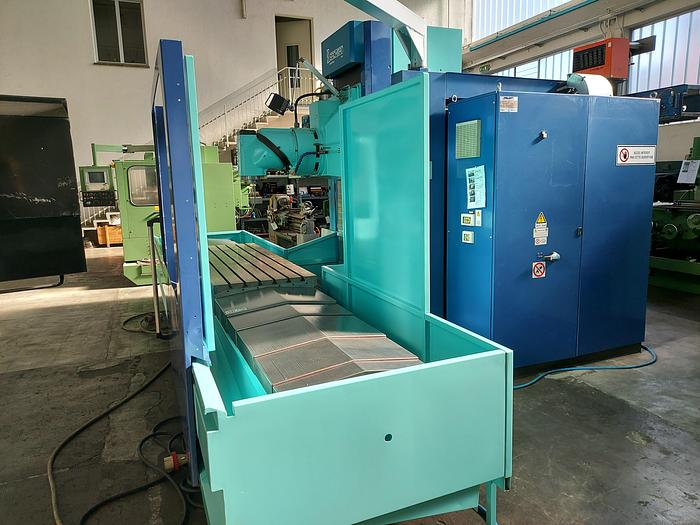

CNC Milling Machine SACHMAN T10 GP - HEIDENHAIN TNC 426
Sold
CNC Milling Machine SACHMAN T10 GP - HEIDENHAIN TNC 426
Location:Lonate Pozzolo, Italy
Description

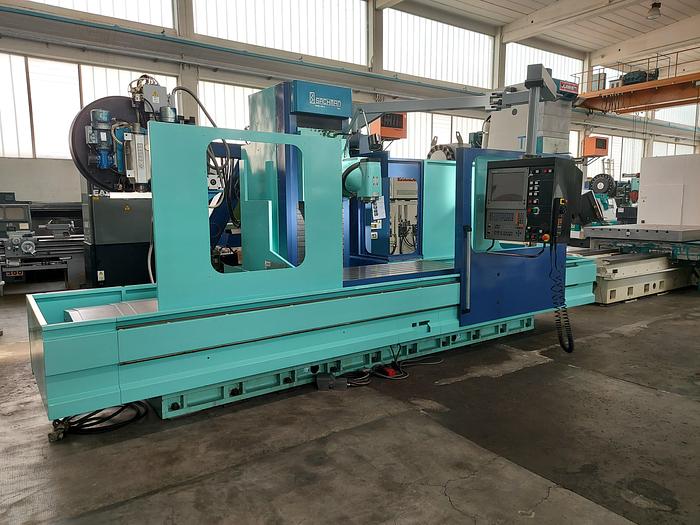

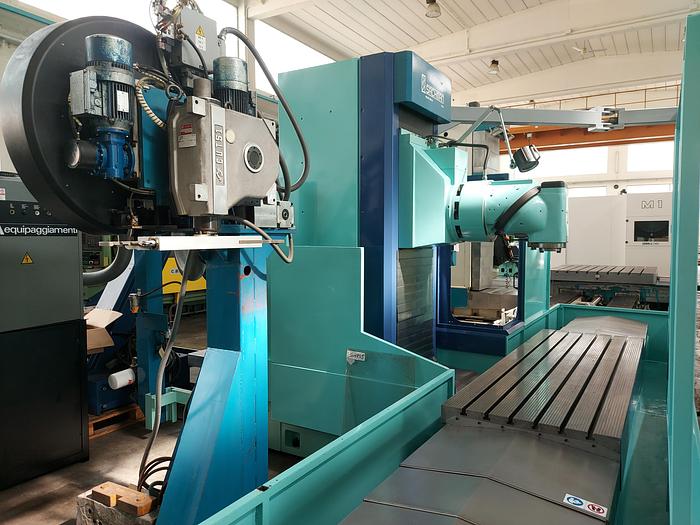

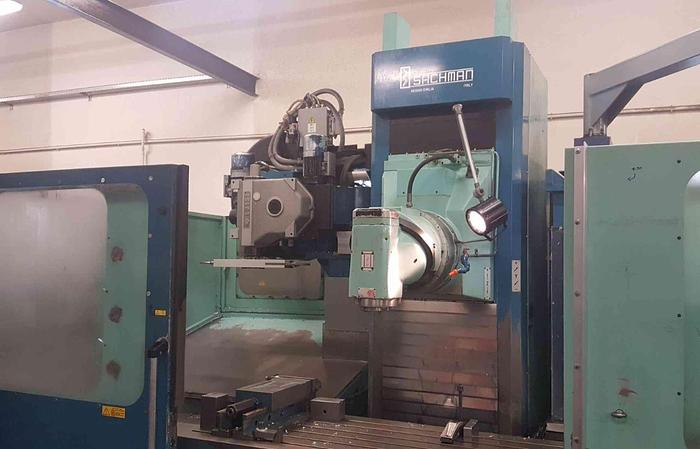

CNC T-Type Milling Boring Machine SACHMAN T10 GP - 4.000 rpm, automatic Index head, capacity 2000x1075x 900 mm, CNC HEIDENHAIN TNC 426
Specifications
| Manufacturer | SACHMAN |
| Model | T10 GP |
| Year | 2000 |
| Condition | Used |
| Stock Number | BF034 |
| Working table size | 2200x710 mm |
| Longitudinal travel x axis | 2000 mm |
| Cross travel y axis | 1075 mm |
| Vertical travel z axis | 900 mm |
| Working feed x-y-z axes | 0 - 15.000 mm/1' |
| Rapid feed x-y-z axes | 15.000 mm/1' |
| Spindle taper | 50 DIN69871 |

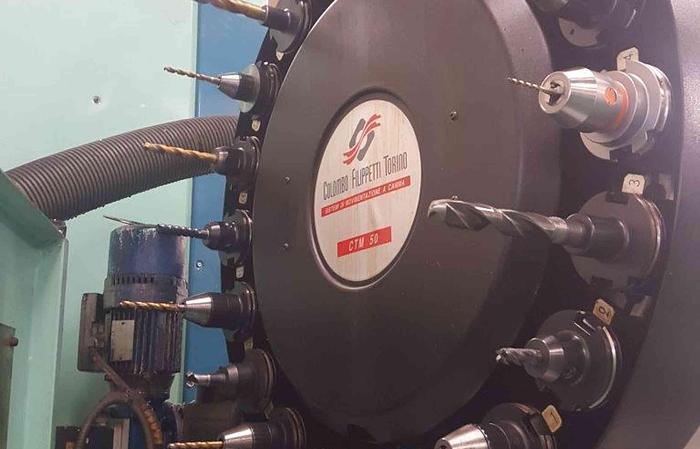

| Automatic tools change number | 20 |
| Spindle speed | 0 - 4000 rpm |
| Number of spindle speeds | 2 |
| Spindle motor power s6 | 20,5 Kw |

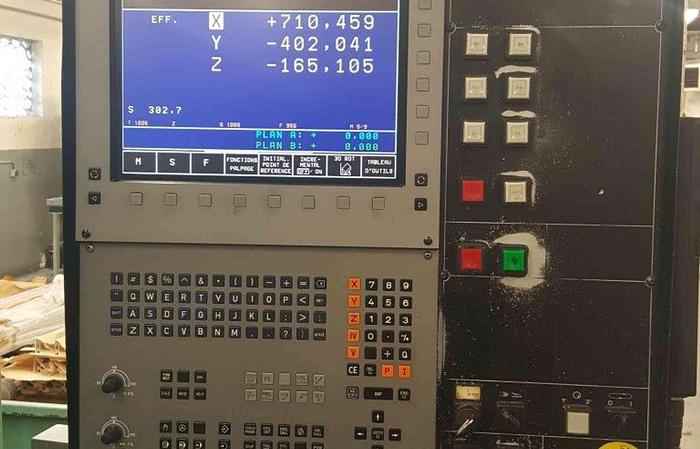

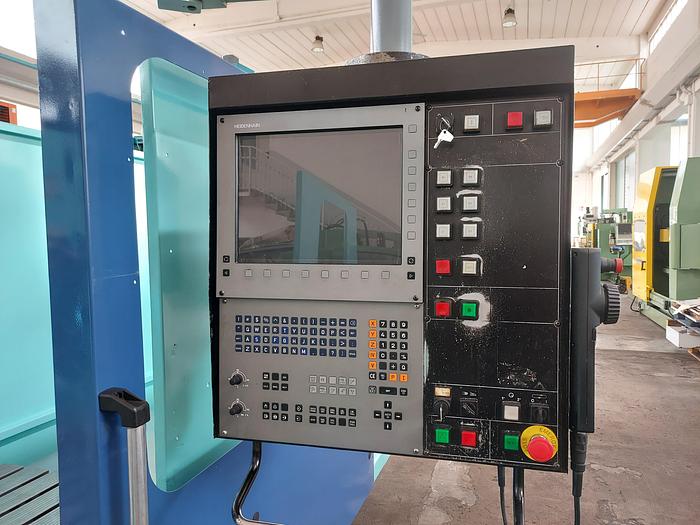

| Cnc | HEIDENHAIN TNC 426 |

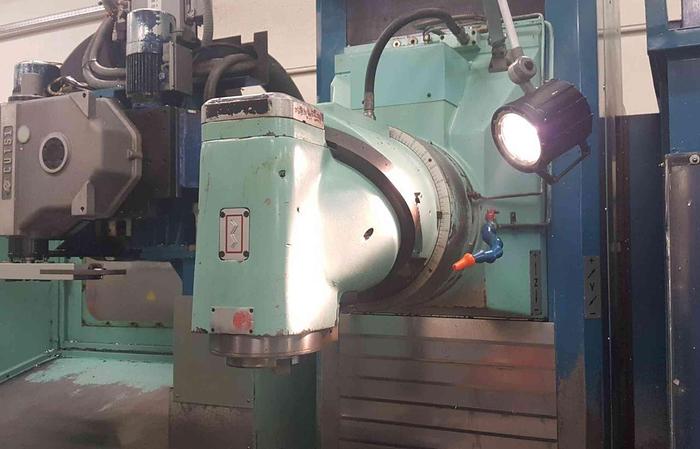

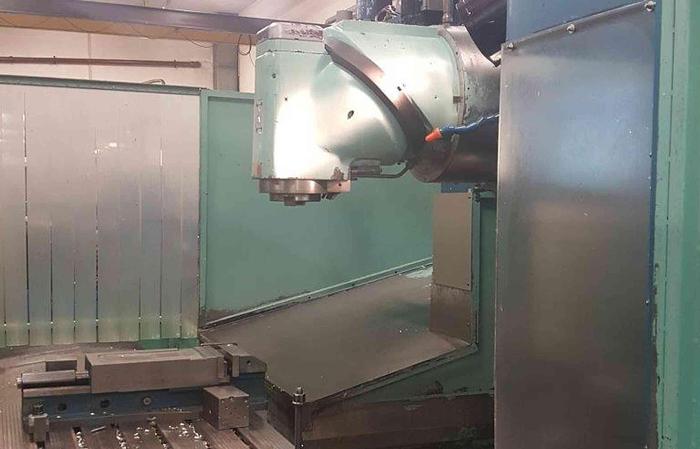

| Accessories | Automatic Index Head 2,5° KOSMO 4000 Chip Conveyor |
Additional Features
Information about technical data are not binding.
Machine available subject to prior sale.
