CNC Miiling machine ALCOR 222 B 5AX - CNC SELCA 3045
Sold
CNC Miiling machine ALCOR 222 B 5AX - CNC SELCA 3045
Location:Lonate Pozzolo, Italy
Description

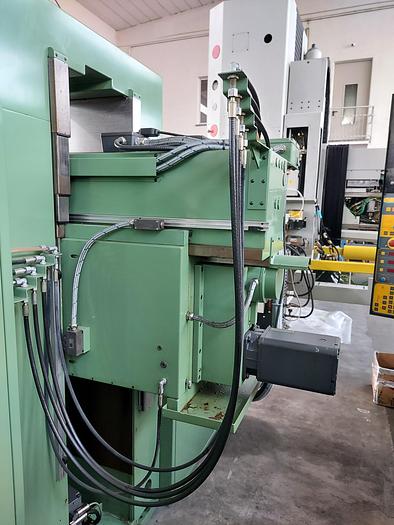

CNC Five axes Miiling machine ALCOR 222 B 5AX - Capacity 1500x600x600 mm, Head +/-90°, rotating table 360.000 positions, CNC SELCA 3045
Specifications
| Manufacturer | ALCOR |
| Model | 222 B 5AX |
| Year | 1996 |
| Condition | Used |
| Serial Number | 7496 |
| Stock Number | FR274 |
| Working table size | 1000x520 mm |
| Longitudinal travel x axis | 1500 mm |
| Cross travel y axis | 600 mm |
| Vertical travel z axis | 600 mm |
| Working feed x-y-z axes | 0 - 11.000 mm/1' |
| Rapid feed x-y-z axes | 11.000 mm/1' |
| Spindle taper | 40 ISO |
| Spindle speed | 0 - 4500 rpm |
| Number of spindle speeds | 2 |
| Spindle motor power | 9 Kw |

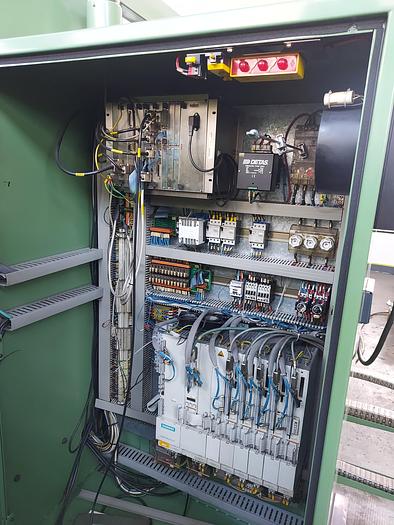

| Cnc | SELCA 3045P |
| Approx net weight | 7.000 Kg |

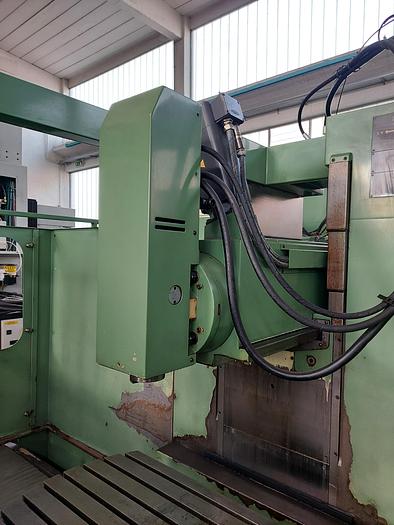

| Accessories | Continuos table 360.000 positions, vertical head +/- 90° |
Additional Features
Information about technical data are not binding.
Machine available subject to prior sale.
