Horizontal Boring Machine JUARISTI TS 3 CNC - HEIDENHAIN 426
Sold
Horizontal Boring Machine JUARISTI TS 3 CNC - HEIDENHAIN 426
Location:Lonate Pozzolo, Italy
Description

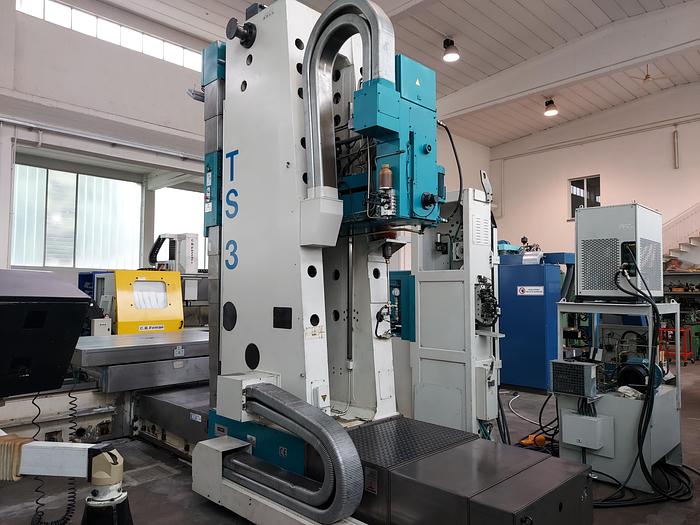

T-Type Boring Machine JUARISTI - TS3 CNC - Spindle Ø 130 mm, capacity 3000x2000x1825+800 mm - HEIDENHAIN TNC 426.
Specifications
| Manufacturer | JUARISTI |
| Model | TS 3 |
| Year | 2000 |
| Condition | Used |
| Stock Number | AL058 |
| Rotary table dimension | 2000x1600 mm |
| Maximum table load | 12.000 Kg |
| Cross travel x axis | 3000 mm |
| Vertical travel y axis | 2000 mm |
| Longitudinal travel w axis | 1825 mm |
| Longitudinal spindle travel z axis | 800 mm |
| Working feed x-y-w axes | 2 - 20.000 mm/1' |
| Rapid feed x-y-w axes | 20.000 mm/1' |
| Spindle taper | 50-DIN69871 |
| Spindle speed | 5 - 2500 rpm |
| Number of spindle speeds | 2 |
| Spindle motor power | 37 Kw |

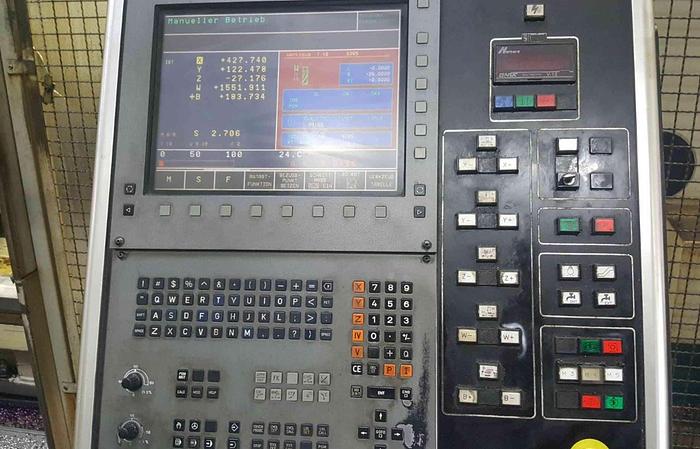

| Cnc | HEIDENHAIN TNC 426 M |
| Weight | 35.000 Kg |

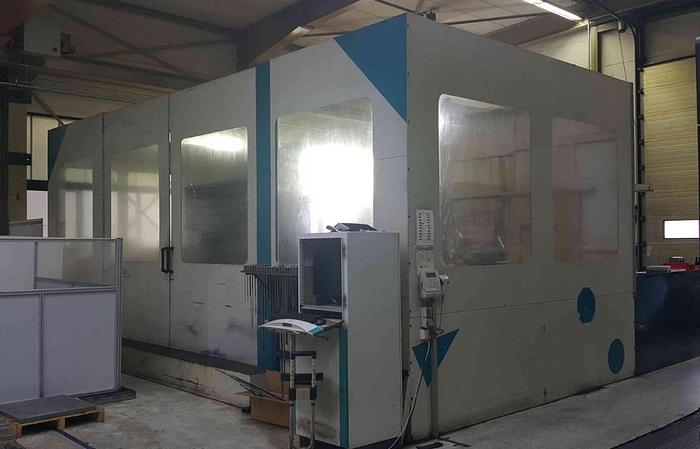

| Accessories | Coolant thrugh spindle, external perimeter guard, CE |
Additional Features
Information about technical data are not binding.
Machine available subject to prior sale.
