Turning Machine GIANA TG 410
Sold
Turning Machine GIANA TG 410
Location:Lonate Pozzolo, Italy
Description

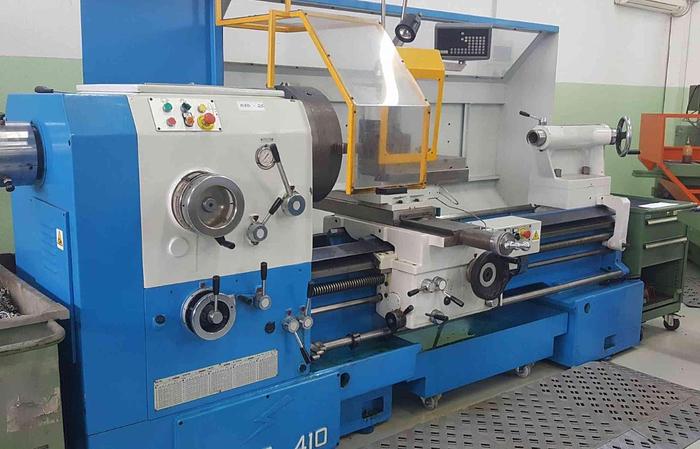

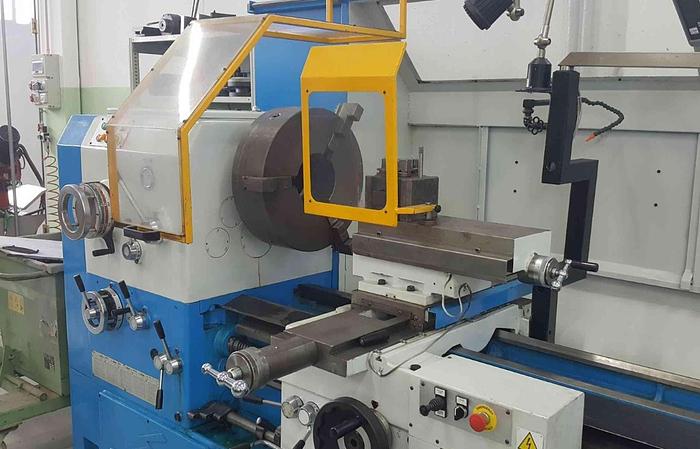

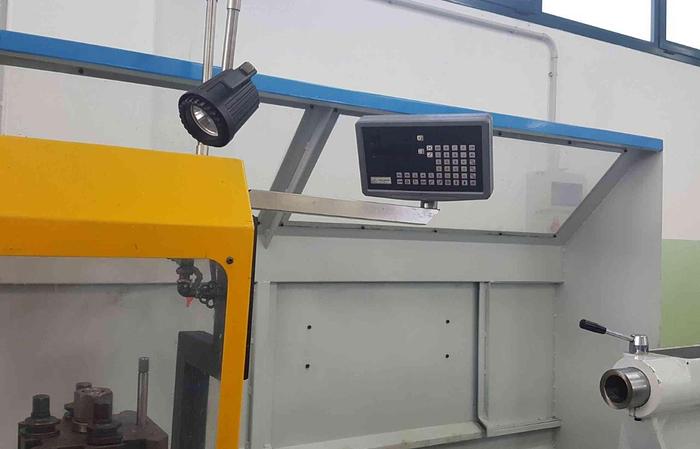

Conventional turning Machine GIANA TG 410 - Capacity Ø 570x1500 mm, Digital read out system, Spindle bore 150 mm, Refurbished
Specifications
| Manufacturer | GIANA |
| Model | TG 410 |
| Condition | Used |
| Stock Number | T491 |
| Height centres | 410 mm |
| Distance between centres | 1500 mm |
| Bed width | 450 mm |
| Swing over crosslide | 570 mm |
| Spindle nose cam-lock din55029 | 11 " |
| Spindle speed | 9 - 1030 rpm |
| Number of spindle speeds | 24 |
| Spindle bore | 150 mm |
| Rapid travel x axis | 5.000 mm/1' |
| Rapid travel z axis | 5.000 mm/1' |
| Taper of quill mt | 6 |
| Spindle motor power | 11 Kw |
| Approx net weight | 5.000 |
Additional Features
Information about technical data are not binding.
Machine available subject to prior sale.
