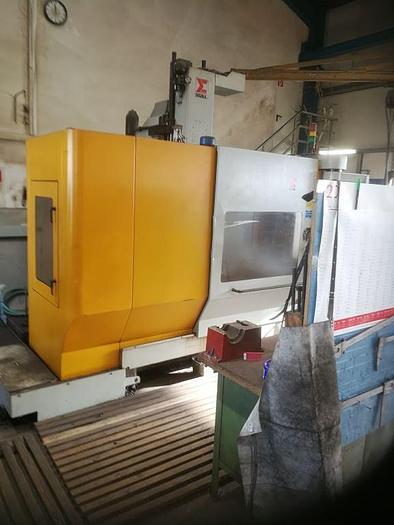

Vertical Machining Centre SIGMA LEADER 5 - CNC HEIDENHAIN TNC 530
Sold
Vertical Machining Centre SIGMA LEADER 5 - CNC HEIDENHAIN TNC 530
Location:Lonate Pozzolo, Italy
Description
Vertical Machining Centre SIGMA LEADER 5 - 15.000 rpm - travel1250x810x630 mm, CNC HEIDENHAIN TNC 530
Specifications
| Manufacturer | SIGMA |
| Model | LEADER 5 |
| Year | 2006 |
| Condition | Used |
| Stock Number | CL083 |
| Working table size | 1400x700 mm |
| Longitudinal travel x axis | 1250 mm |
| Cross travel y axis | 810mm |
| Vertical travel z axis | 630 mm |
| Measurement system | HEIDENHAIN optical scales |
| Working feed x-y-z axes | 0 - 40.000 mm/1' |
| Rapid feed x-y-z axes | 40.000 mm/1' |
| Spindle taper type | 40 DIN-69871 |

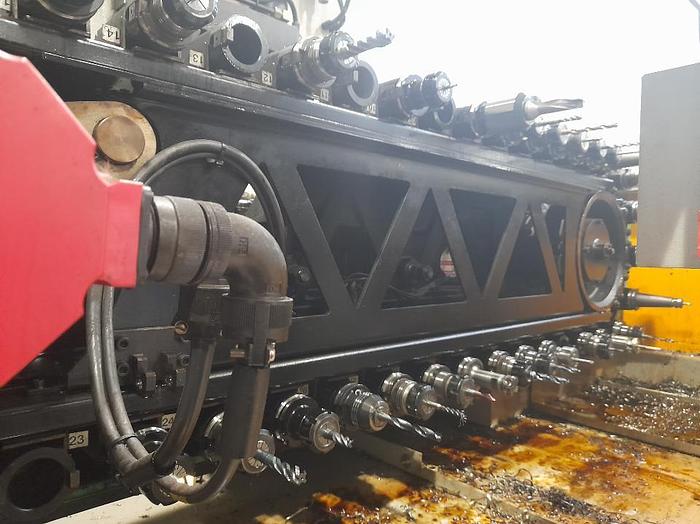

| Automatic tools change nr. | 40 |
| Spindle speed | 0- 15.000 rpm |
| Spindle motor power | 27 Kw |

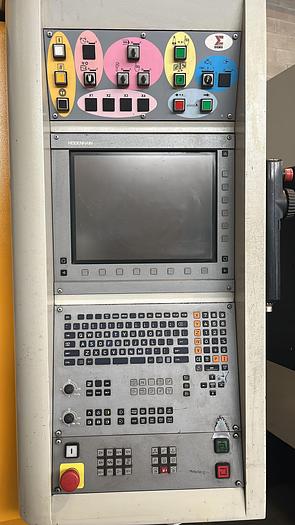

| Cnc | HEIDENHAIN TNC 530 |
| Approx net weight | 10.000 Kg |

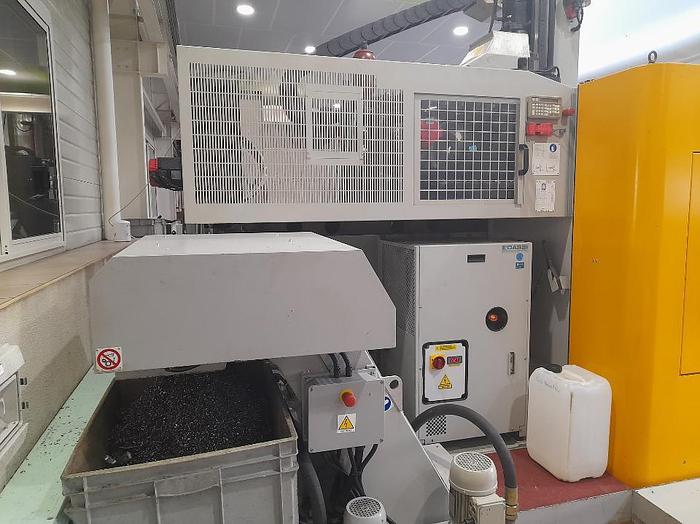

| Accessories | through-spindle coolant, chip conveyor |
Additional Features
Information about technical data are not binding.
Machine available subject to prior sale.
