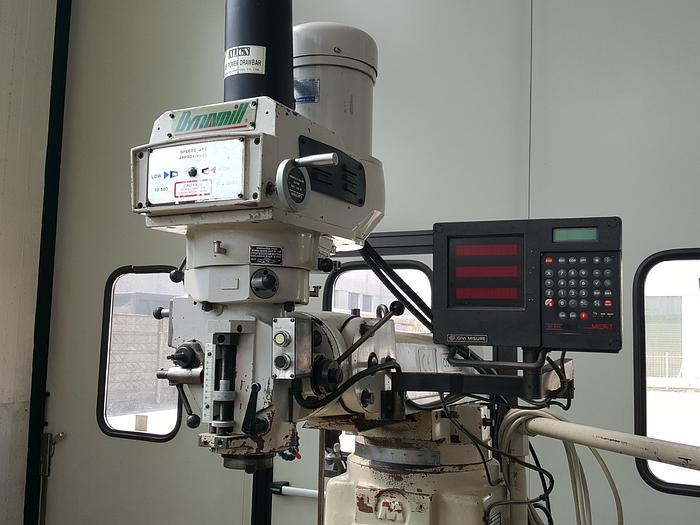

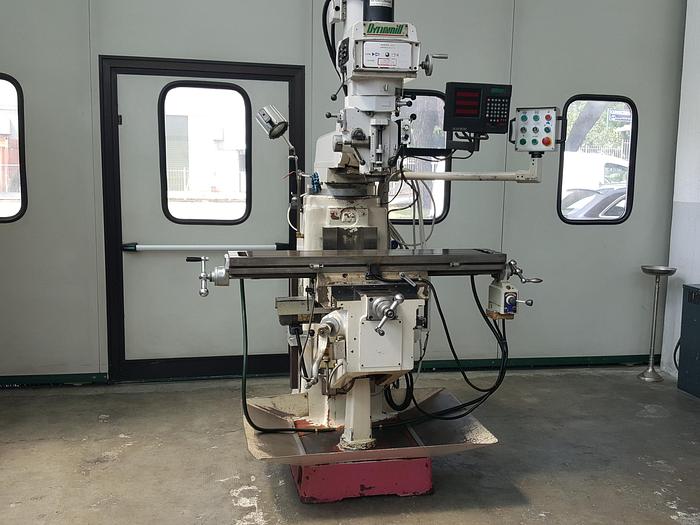

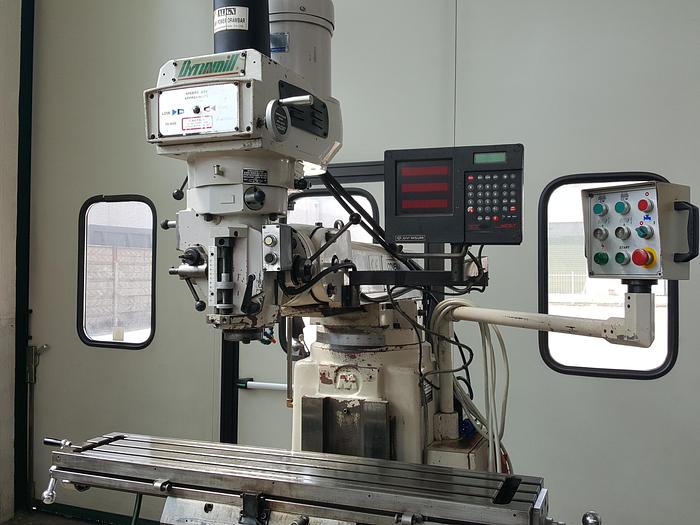

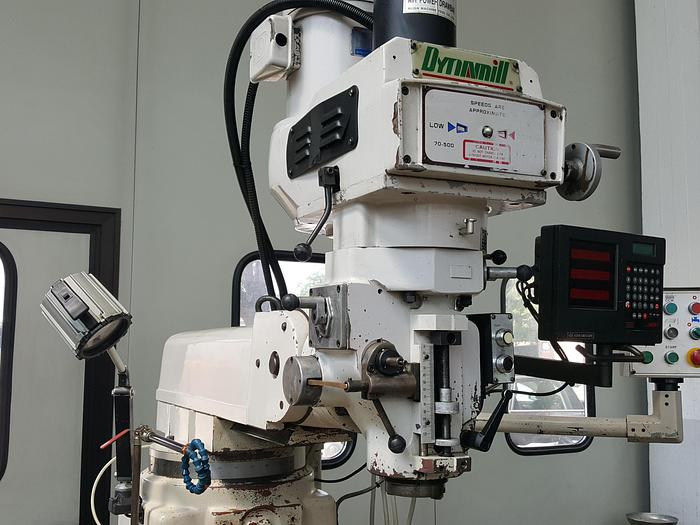

Turret milling machine DYNAMILL B_4V
Turret milling machine DYNAMILL B_4V
Contact us for price
Location:Lonate Pozzolo, Italy
Description
Turret milling machine DYNAMILL B-4V - capacity 900x380x600 mm, Digital read-out system
Specifications

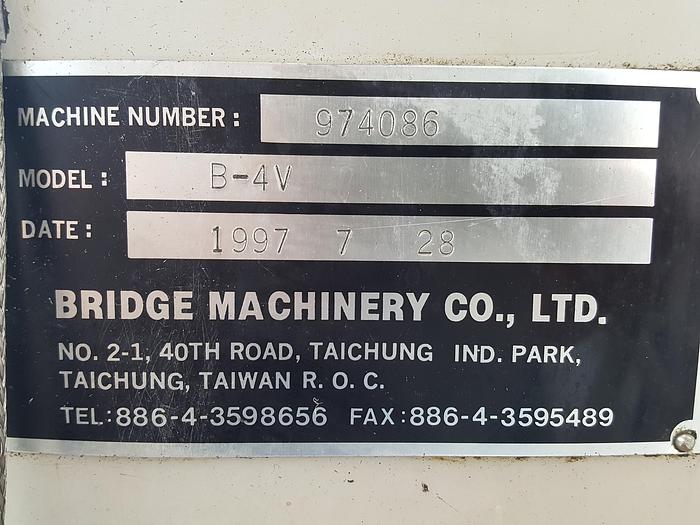

| Manufacturer | BRIDGE MACHINERY |
| Model | DYNAMILL B-4V |
| Year | 1997 |
| Condition | Used |
| Stock Number | FR314 |
| Working table size | 1270x254 mm |
| Longitudinal travel x axis | 900 mm |
| Cross travel y axis | 380 mm |
| Vertical travel z axis | 406 mm |
| Spindle taper | 40 ISO |
| Spindle speed | 40- 3800 rpm |
| Number of spindle speeds | Stepless |
| Spindle motor power | 3,7 Kw |
| Quill spindle travel | 127mm |
| Number of working feeds | stepless by DC motor |
| Weight | 2.000 Kg |
| Accessories | DRO, coolant. |
Additional Features
Information about technical data are not binding.
Machine available subject to prior sale.
